MD 500E0
MD 500E
High Speed. Greater Visibility. More Head and Legroom. Reliable.
- Product Introduction
- Technical Specification
- Photo Gallery

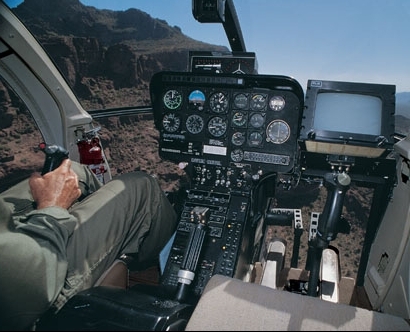

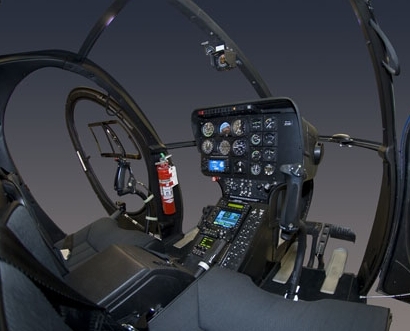

The MD 500E® helicopter delivers the highest speed, payload and productivity in its class. Rear seat passengers have greater headroom and visibility than earlier Model 500s. Refinements provide first class front and rear seating with ample legroom. The T-shaped instrument panel provides place for a full complement of modern avionics.
With a five-bladed main rotor and the choice of a 420-shp Rolls-Royce 250- C20B or 450-shp Rolls-Royce 250-C20R turbine engine, the MD 500E is the best performing helicopter in its class.
Proven reliability of the derated turbine engine, fail-safe design and a worldwide network of factory-authorized service centers assure customer satisfaction.
MD 500E
Engine
罗•罗250-C20B（1台）(标准)
罗•罗250-C20R/2（1台）(选装)
MTOW
1361公斤
1361 kg
Standard Payload
689公斤
673 kg
External Payload
938 kg
922 kg
HIGE①
2591 m
3444 m
HOGE①
2073 m
2896 m
Max Cruise Speed②
250 km/hr
250 km/hr
Range②
537 km
532 km
Max Operating Altitude
4877 m
4877 m
Seating
2+3
2+3
①准大气，白天
②1524米，标准大气
